• 10 Foot Ethernet control cable
• HD Switch Panel w/ mounting bracket and necessary hardware
• Legends (sheet of 72 standard switch reusable labels)
• Installation Instructions

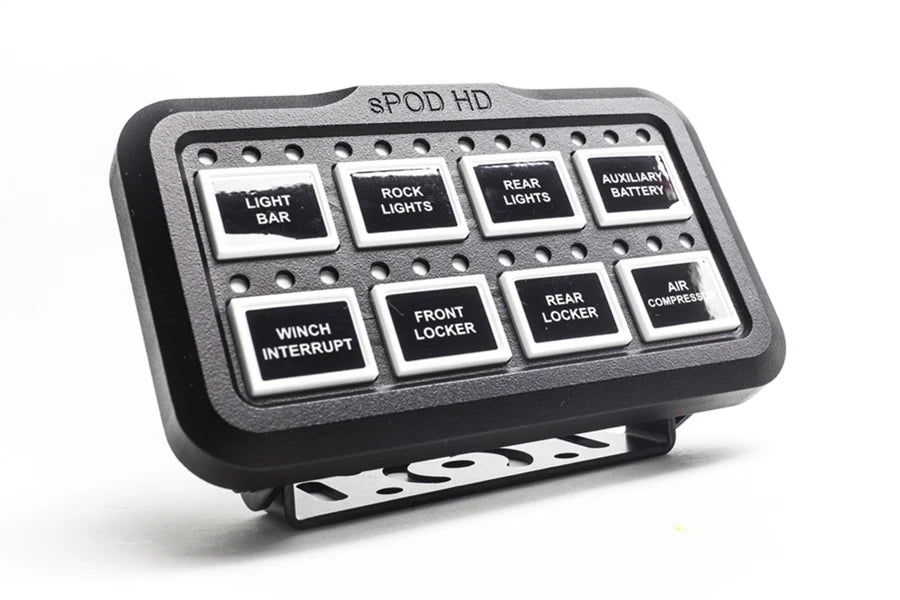

HD Switch Panel Features:

• Encased in an aluminum billet machined housing, powder coated black, utilizing tactile switches encapsulated in silicone.
• Silicone Buttons with positive touch feedback.
• Bluetooth LE
• Panel is designed to withstand the harshest environments with all weather conditions considered.
• Compact in size: 2-7/8W x 4-7/8L x 1/2 Thick (smaller than an iPhone).
• Universal back with two pressed-in 1/4-20 studs x 5/8 inches long for flat mounting.
• Standard universal articulating mount for a multitude of mounting options.
• One standard RJ45 jack on back for communication cable between HD panel and the Source.
• HD can be located up to 25 feet from the Source using standard CAT-6 Ethernet cable.
• Built in Bluetooth LE allows you to program and control our system with iPhones, iPad, iPad Mini, sPOD HD app. (free download)
• Each switch programmable for dimming, flash, momentary, strobe, and switch linking (program any switch to be a master to control other switches).
• All 8 switches are RGB backlit.
• Adjustable timer to turn backlight off and a simple touch on any switch to reactivate.
• Quickly turn backlight off by holding 2 designated buttons.
• Backlight color and intensity can be changed to any color to match vehicle interior dash lighting.
• Legends can be applied (comes standard with one sheet of 72 legends).
• Each switch has 3 status lights: Red (left) = On, White (center) = Flash/Strobe active, Blue (right) = Active visual feedback when button is pushed.
• Status lights can be dimmed.
• Additional HD smart controller can be added for different locations.
• HD can run in conjunction with our SE Touchscreen, Bluetooth and SE 8 Switch panel.

Bluetooth Requiments:

• Download sPOD Bantam app from iTunes or Google Play Store
• Bluetooth 4.0 compatible
• Compatible with Android devices
• iPhone 4s or newer, iPad 2 or newer, iPad mini iOS 7 or newer
• Existing sPOD system
• Access to iTunes App Store or Google Play Store

NOTE: The HD will go into “Deep Sleep” after 6 hours of inactivity (ie: no usage of the HD or not running the engine). Once in deep sleep, the HD will turn off any accessories that were left on (including refrigerators!).
